- Step 1
SET IN SELF-DIAGNOSIS MODE
- a
Turn ignition switch ON.
- b
Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.), press OFF switch for at least 5 seconds.
- Step 2

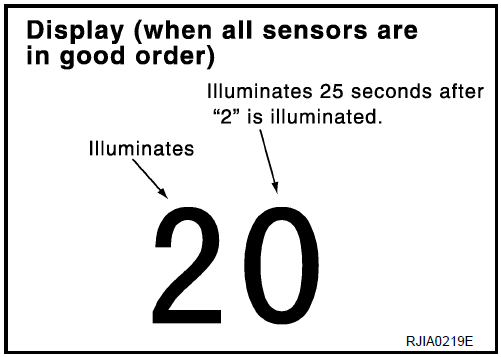

SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
- Malfunctioning Sensor
- 21 / -21
Ambient sensor
- 22 / -22
In-vehicle sensor
- 24 / -24
Intake sensor
- 25 / -25
Sunload sensor (Ignore this code)
- 26 / -26
Air mix door motor PBR (Driver side)
- 27 / -27
Air mix door motor PBR (Passenger side)
- Step 3

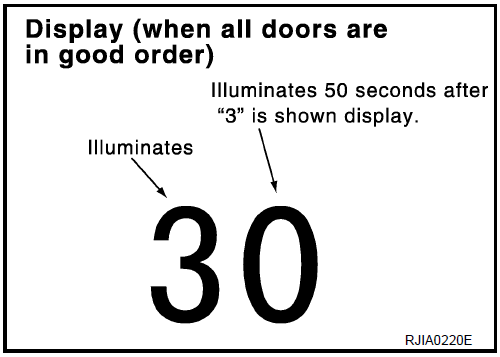

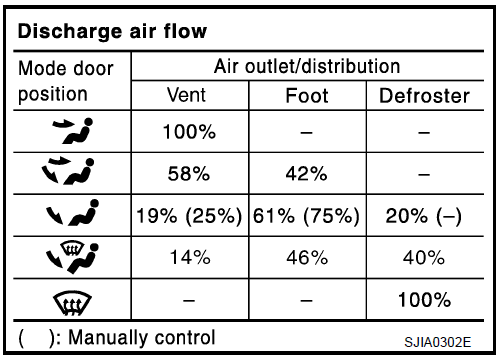

MODE DOOR AND INTAKE DOOR POSITIONS ARE CHECKED
- a
Press temperature (UP) switch (driver side).
- Malfunctioning Actuator
- 31
VENT
- 32
B/L
- 33
B/L
- 34
FOOT
- 35
D/F
- 36
DEF
- 37
FRE
- 38
20% FRE
- 39
REC
- Step 4

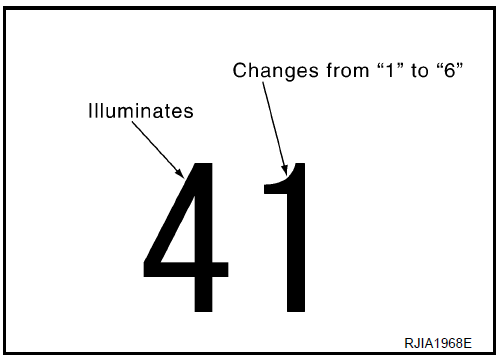

OPERATION OF EACH DOOR MOTOR IS CHECKED
- a
Press temperature (UP) switch (driver side).
- b
Press (DEF) switch. Code No. of each door motor test is indicated on the display.
- Step 5
TEMPERATURE OF EACH SENSOR IS CHECKED
- a
Press temperature (UP) switch (driver side).
- b
Code No. 51 appears on the display.
- c

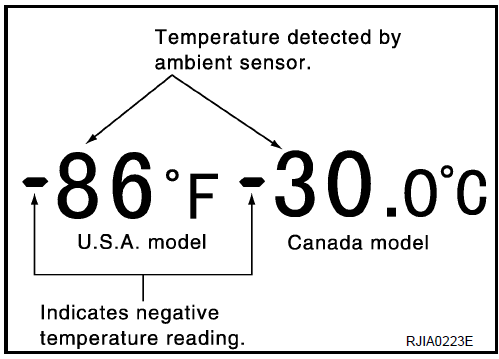

Press (DEF) switch one time. Temperature detected by ambient sensor is indicated on the display.
- Note:
If temperature shown on display greatly differs from actual temperature, check sensor circuit first, then inspect sensor.
- c

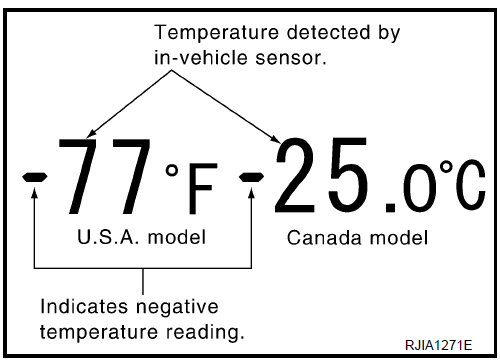

Press (DEF) switch a second time. Temperature detected by invehicle sensor is indicated on the display.
- Note:
If temperature shown on display greatly differs from actual temperature, check sensor circuit first, then inspect sensor.
- c
Press (DEF) switch a third time. Temperature detected by intake sensor is indicated on the display.
- Note:
If temperature shown on display greatly differs from actual temperature, check sensor circuit first, then inspect sensor.
